ID # 68108628

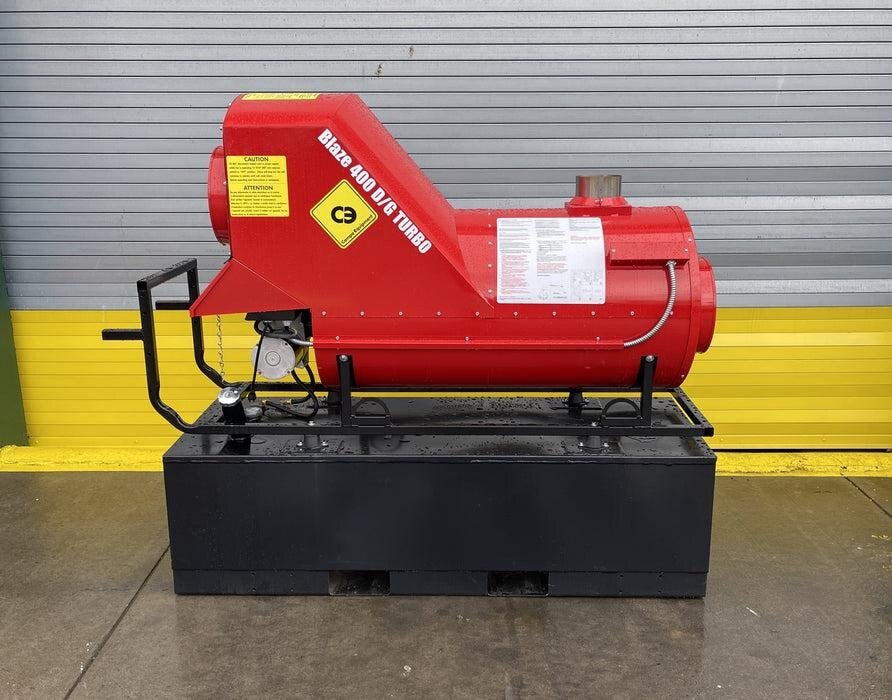

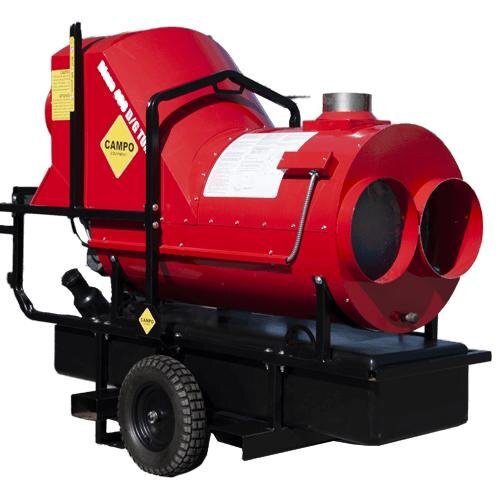

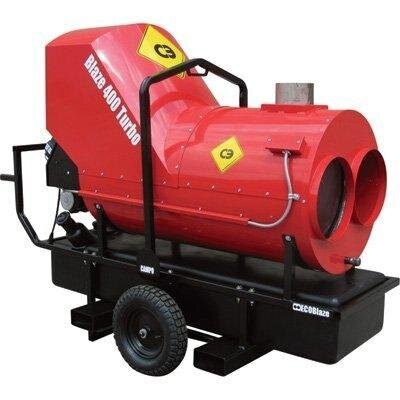

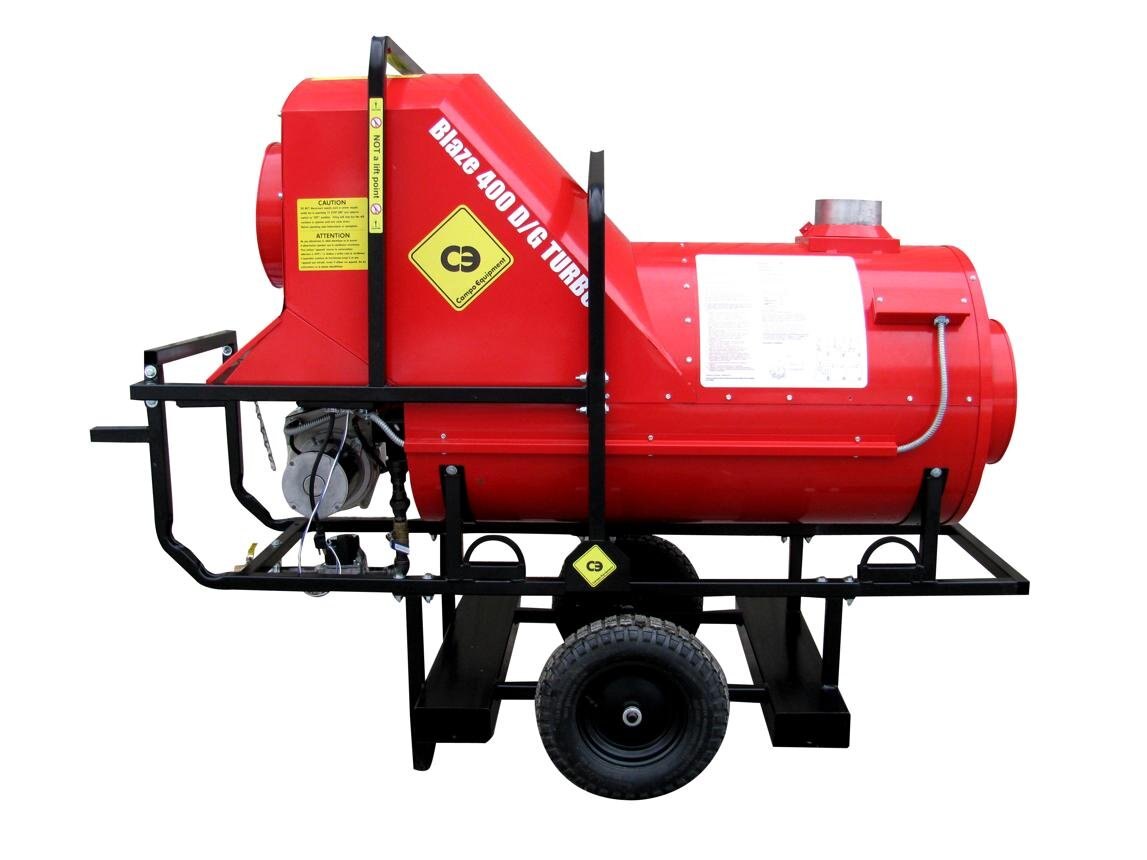

400,000 BTU Diesel Industrial Heater | Campo Blaze 400D
Call for Price
Overview
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Campo Equipment / EcoBlaze |
| Model | Blaze 400D Turbo |
| Equipment Type | Indirect-Fired Diesel Industrial Heater |
| Heating Capacity | 399,000 BTU/h |
| Airflow | 5,500 CFM |
| Fuel | Diesel / No. 1 or No. 2 Oil |
| Fuel Consumption | Approx. 2.8 gal/hr |
| Fuel Tank | 42 US gal |
| Runtime | Up to 21 hours at full load |
| Motor | 1 HP |
| Electrical | 115/120 V |
| Full Load Amperage | 8.5 A |
| Static Pressure | Up to 3 in. W.C. |
| Ductability | Up to 150 ft. discharge / 50 ft. inlet |
| Outlet Ducting | 2 × 12" or 1 × 16" |
| Inlet Ducting | 2 × 12" or 1 × 16" |
| Heat Rise | Approx. 220°F |
| Burner | Beckett oil burner |
| Heat Exchanger | Stainless steel |
| Thermostat | Yes |
| Recirculation | Yes |
| Dimensions | 76.7" L × 31" W × 57.6" H |
| Weight | Approx. 600 lb |
| Certification | CSA/UL |
Model
Blaze 400D
Category Name
Heaters
Sale Type
Rent
Manufacturer
Campo
Model
Blaze 400D
Category Name
Heaters
Sale Type
Rent
Manufacturer
Campo
Quantity
1
